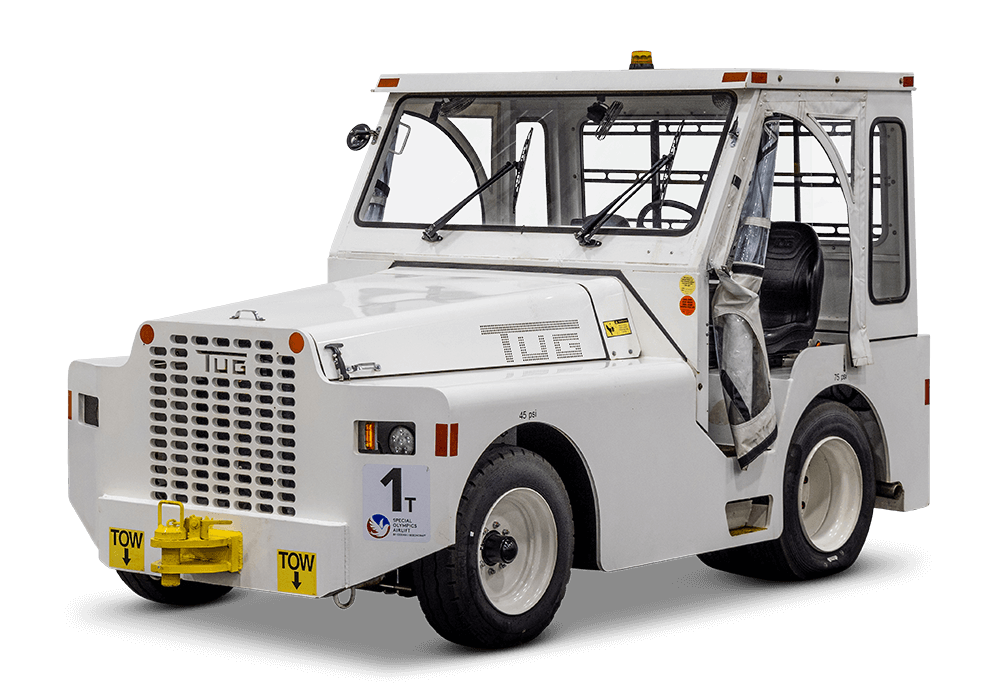

MT
Built to handle heavy loads, the TUG MT makes every task attainable. Designed for both aircraft pushback and heavy cargo transport, it delivers the stability and control operators can depend on in demanding ramp environments. A spacious cab, suspension seating, and available full HVAC enhance operator comfort, while a choice of Kubota gas or 400-volt electric power provides the flexibility to match your fleet's goals. Wherever the job takes it, the TUG MT helps keep operations moving efficiently and confidently.
-
Gas
-
Lithium
Power steering provides precise maneuverability, reducing operator effort.
This versatile equipment offers pushback capabilities in addition to the standard features of a baggage tractor.
Up to 12,000 lbs (5,443 kg) of drawbar pull and pushback capability for aircraft up to 120,000 lbs, supporting maximum takeoff weights of 150,000 lbs.
Available in gas or high-voltage electric configurations, with eurodin posihcarge & level 3 high voltage charging options to fit evolving infrastructure.
Technical Specs
| Kubota WG3800 | |
|---|---|
| SAAB | 2000, 340 |
| Fokker | F50, F100, F70 |
| Dehavi Lland | Dash 8 Q200, Dash 8 Q400 |
| Fairchild | Dornier 328 |
| ATR | 42, 72 |
| BAE | 146, Avro RJ Series |
| Boeing | B707 |
| Bombardier | CRJ100, CRJ1000, CRJ200, CRJ700, CRJ900 |
| Embraer | ERJ135, ERJ140, ERJ145, ERJ170, ERJ175, ERJ190, ERJ195 |
| McDonnell Douglas | DC9 |
| Kubota WG3800 | |
|---|---|
| Width | 74” (1,880 mm) |
| Wheelbase | 80” (2,032 mm) |
| Height (Less Cab) | 60” (1,524 mm) |
| Height (With Cab) | 84” (2,133.6 mm) |
| Standard Weight | 10,700 lbs (4,853 kg) |
| Minimum Weight | 10,700 lbs (4,853 kg) |
| Maximum Weight | 14,500 lbs (6,577 kg) |
| Length (without Hitches) | MT8: 127” (3,230 mm), MT12: 133” (3,380 mm) - 12,000 lbs DBP |
| Ground Clearance | 8.3” (210.82 mm) |
| Outside Turning Radius | 173” (4,394.2 mm) |
| Kubota WG3800 | |
|---|---|
| Top Speed | 15 mph (24.14 km/h) |
| EPA Tier / Certification Level | CARB and EPA Compliant |
| Type | Liquid-Cooled, 4 Cylinder, Vertical In Line |
| Kubota WG3800 | |
|---|---|
| Fuel & Compatible Fuel (Type & Quantity) | 30 US gal (113.5 L) / Gas 87 or 89 Octane |
| Displacement (Size of Engine) | 230 CID (3.8 L) |
| Governed RPM with Full Load | 2,600 |
| Net Brake HP at Governed RPM | 87.2 |
| Transmission | GM 4LHD |
| Torque | 177 lb ft (240 Nm) @ 2,600 RPM |
