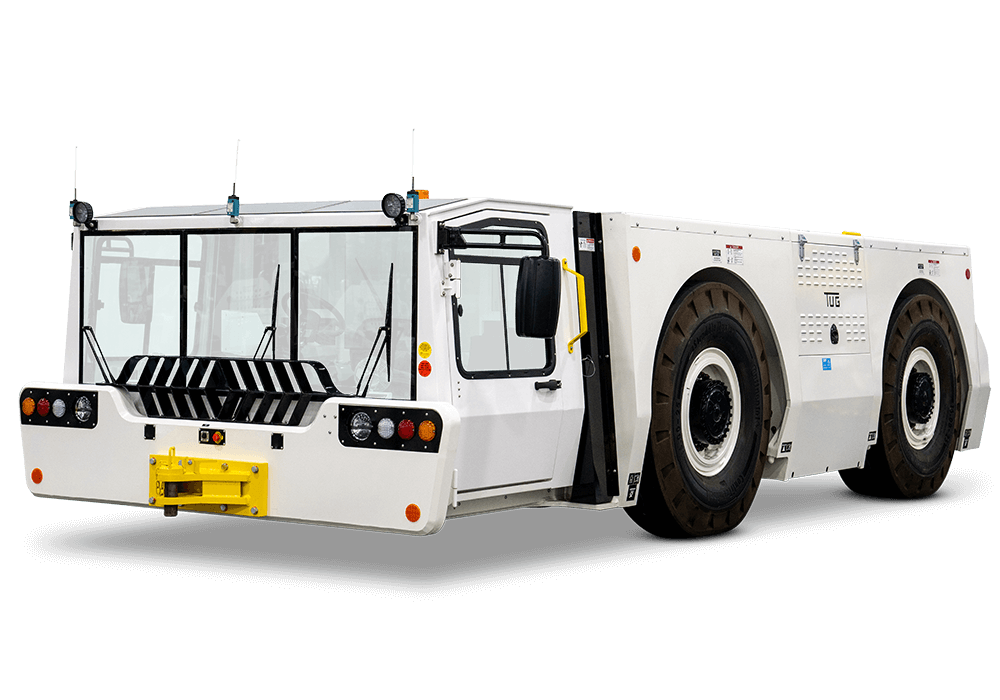

ALPHA 4
Elevate your Operation
The TUG ALPHA 4 was engineered to increase productivity, enhance operator comfort and streamline operations, making it ideal for the transportation of wide-bodied aircraft. This conventional pushback incorporates a comprehensive range of safety features that protects both operators and valuable assets, all managed by the 7" (17 cm) LCD control system located in the cab.
-
CE Certified
-
Diesel
Learn More about TUG ALPHA 4
Watch
Video
ELEVATING FRONT CAB
The elevating front cab design provides operators with an unobstructed view, eliminating the need for a rear cab.
REMOTE DIAGNOSTICS
The remote diagnostic system enables real-time monitoring and analysis of the performance and condition of equipment. The use of sensors, data communication channels, and sophisticated software is used to monitor equipment from a centralized platform.
GROUND LEVEL SERVICE POINTS
Designed for accessibility, these ground level service points ensure easy access to crucial components without the need for extensive lifting or climbing.
LCD TOUCH SCREEN DISPLAY
The LCD color display provides real-time updates for your operation’s status. This feature helps provide the insights needed to make informed decisions.
Technical Specs
| Deutz TCD 7.8L | Cummins B6.7L | |
|---|---|---|
| Width | 114" (2,895.6 mm) | |
| Wheel Base | 125.75" (3,194 mm) | |
| Height (Less Cab) | 71.5" (1,816.1 mm) | |
| Height (With Cab) | 87.5" (2,222.5 mm) - Fixed | |
| Maximum Weight | 120,000 lbs (54,432 kg) | |
| Length (Without Hitches) | 279.3" (7,092.95 mm) | |
| Ground Clearance | 10" (254 mm) | |
| Deutz TCD 7.8L | Cummins B6.7L | |
|---|---|---|
| Top Speed | 15 mph (24.1 km/h) | |
| EPA Tier / Certification Level | Tier 4F / Stage IV | Tier 4F / Stage V |
| CE Certified | Yes | |
| Max Drawbar | 72,000 lbs (32,659 kg) | |
| Deutz TCD 7.8L | Cummins B6.7L | |
|---|---|---|
| Type | Water-Cooled, Direct Injected, Turbocharged 6 Cylinder | |
| Fuel & Compatible Fuel (Type & Quantity) | 65 US gal (246 L); ULSD only | |
| Displacement (Size of Engine) | 476 CID (7.8 L) | 408 CID (6.7 L) |
| Governed RPM w/ Full Load | 2,200 | |
| Net Brake HP at Governed RPM | 300 (225 kW) | 280 (209 kW) |
| Transmission | ZF 4WG210 (4F/2R) | |
| Torque | 922 lb ft (1250 Nm) @ 1,500 RPM | 950 lb ft (1288 Nm) @ 1,500 RPM |
