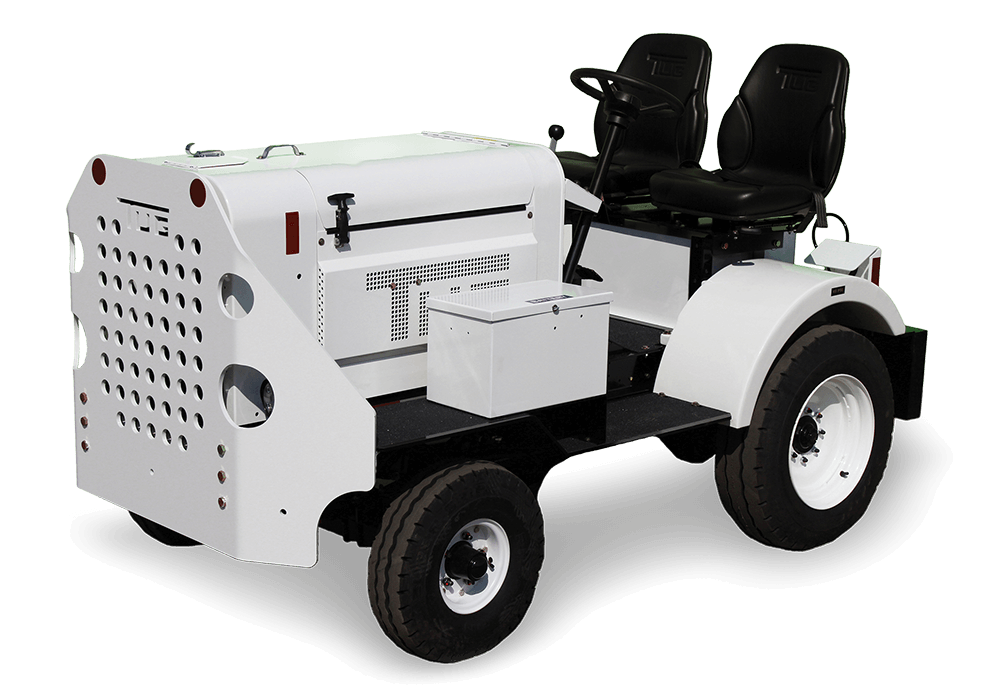

MA
Trusted for its durability, the TUG MA remains resolute even in the most demanding environments. Enjoy the benefits of power steering, smooth navigation and a heavy-duty axle to make handling large loads seem effortless. To cater to your specific operational requirements, the TUG MA offers a range of engine and hitch options that showcase its versatility. Elevate your ground support fleet with the TUG MA.
![](https://textrongse.txtsv.com/sites/default/files/_images/product/TUG%20MA%20-%201000%20X%20700.png)
-
Gas/Diesel
![Textron GSE - TUG MA - Baggage Tractor - High Speed Capability](https://textrongse.txtsv.com/sites/default/files/styles/compress/public/_images/media_slide/TUG%20MA%20-%20HIGH%20SPEED%20CAPABILITY.png?itok=G-kmXecn)
This vehicle has high speed capability of up to 15 mph (24 km/h), allowing for efficient movement on the ramp.
![Textron GSE - TUG MA - Baggage Tractor - Customizable Features](https://textrongse.txtsv.com/sites/default/files/styles/compress/public/_images/media_slide/TUG%20MA%20-%20CUSTOMIZABLE%20FEATURES.jpg?itok=hfG0i2qw)
Customizable features allow you to choose an engine and hitch that best fit your ground support needs.
![Textron GSE - TUG MA - Baggage Tractor - Power Steering](https://textrongse.txtsv.com/sites/default/files/styles/compress/public/_images/media_slide/TUG%20MA%20-%20POWER%20STEERING.jpg?itok=Un1FYlj3)
Power steering provides precise maneuverability, reducing operator effort.
![Textron GSE - TUG MA - Baggage Tractor - Max Drawbar](https://textrongse.txtsv.com/sites/default/files/styles/compress/public/_images/media_slide/TUG%20%20MA%20-%20MAX%20DRAWBAR.jpg?itok=2QIoEe7j)
This equipment can transport substantial weight with a max drawbar rating of 6,000 lbs (2,721 kg).
Technical Specs
Ford MSG-425 EFI Gasoline | Kubota WG2503G | Deutz D2.9L | |
---|---|---|---|
Width | 55" (1,397 mm) | ||
Wheelbase | 59" (1,499 mm) | ||
Height (Less Cab) | 63.5" (1,613 mm) | ||
Height (With Cab) | 84" (2,134 mm) | ||
Standard Weight | 3,750 lbs (1,701 kg) | ||
Minimum Weight | 3,750 lbs (1,701 kg) | ||
Maximum Weight | 7,500 lbs (3,402 kg) | ||
Length (without Hitches) | 113" (2,870 mm) | ||
Ground Clearance | 6.5" (165 mm) | ||
Outside Turning Radius | 115" (2,920 mm) |
Ford MSG-425 EFI Gasoline | Kubota WG2503G | Deutz D2.9L | |
---|---|---|---|
Top Speed | 15 mph (24.1 km/h) | ||
EPA Tier / Certification Level | - | - | Tier 4F |
Type | Water-Cooled, 4 Cylinder EFI | Water-Cooled, 4 Cylinder, Vertical In Line | Water-Cooled, 4 Cylinder, Common Rail In Line |
Ford MSG-425 EFI Gasoline | Kubota WG2503G | Deutz D2.9L | |
---|---|---|---|
Fuel & Compatible Fuel (Type & Quantity) | Gas / CNG / LPG | Gas | Ultra Low Sulfer Diesel |
Displacement (Size of Engine) | 153 CID (2.5 L) | 152 CID (2.5 L) | 177 CID (2.9 L) |
Governed RPM with Full Load | 2,600 | ||
Net Brake HP at Governed RPM | 69 (52 kW) | 54 (40 kW) | 49 (36.5 kW) |
Transmission | GM 4LHD (with Gen III Electronic Valvebody) | ||
Torque | 143 lb ft (194 Nm) @ 2,400 RPM | 126 lb ft (171 Nm) @ 1,800 RPM | 108 lb ft (148 Nm) @ 1,600 RPM |
